CVD ZnSe (CVD Zinc Selenide) |
| Zinc selenide produced by method of chemical vapour deposition is a material of choice for a variety of IR applications. ZnSe is a clear yellow polycrystalline material with a grain size of 50-70µm. ZnSe is characterized by high transmission in the range 0.5-15µm and low absorption at 10.6µm. Due to these properties combined with a relatively high thermal resistance ZnSe is the most suitable material for high power CO2 laser systems. CVD ZnSe optics are indispensable in CO2 industrial engravers and medical laser systems.
|
Optical Properties: | - | Bulk Absorption Coefficient @ 10.6 micrometers Temp. Change of Refractive Index @ 10.6micrometers Refractive Index Non-homogeneity @ 632.8nm | 0.0005/cm 61x10-6/°C <6X10-6 | Thermal Properties: | - | Thermal Conductivity Specific Heat Linear Expansion Coefficient @ 20°C | 0.18W/cm/°C 0.356J/g/?C 7.57x10-6/°C | Mechanical Properties: | - | Young\'s Modulus Rupture Modulus Knoop Hardness Density Poisson\'s Ratio | 6.85X1011 dyne/cm2 5.7X108 dyne/cm2 110-130Kg/mm2 5.27g/cm3 0.28 | Multiply dyne/cm2x 1.45 x 10-6 to give PSI | - |
|
Refractive Index of CVD ZnSe:
|
Wave-length(μm) | Index | Wave-length(μm) | Index | Wave-length(μm) | Index | Wave-length(μm) | Index | 0,54 | 2,68 | 1,8 | 2,45 | 7,4 | 2,42 | 13 | 2,39 | 0,58 | 2,63 | 2,2 | 2,44 | 7,8 | 2,42 | 13,4 | 2,38 | 0,62 | 2,6 | 2,6 | 2,44 | 8,2 | 2,42 | 13,8 | 2,38 | 0,66 | 2,58 | 3 | 2,44 | 8,6 | 2,41 | 14,2 | 2,37 | 0,7 | 2,56 | 3,4 | 2,44 | 9 | 2,41 | 14,6 | 2,37 | 0,74 | 2,54 | 3,8 | 2,43 | 9,4 | 2,41 | 15 | 2,37 | 0,78 | 2,53 | 4,2 | 2,43 | 9,8 | 2,41 | 15,4 | 2,36 | 0,82 | 2,52 | 4,6 | 2,43 | 10,2 | 2,41 | 15,8 | 2,36 | 0,86 | 2,51 | 5 | 2,43 | 10,6 | 2,4 | 16,2 | 2,35 | 0,9 | 2,5 | 5,4 | 2,43 | 11 | 2,4 | 16,6 | 2,35 | 0,94 | 2,5 | 5,8 | 2,43 | 11,4 | 2,4 | 17 | 2,34 | 0,98 | 2,49 | 6,2 | 2,43 | 11,8 | 2,39 | 17,4 | 2,34 | 1 | 2,49 | 6,6 | 2,42 | 12,2 | 2,39 | 17,8 | 2,33 | 1,4 | 2,46 | 7 | 2,42 | 12,6 | 2,39 | 18,2 | 2,33 |
|
Zinc Selenide Transmission Graph |

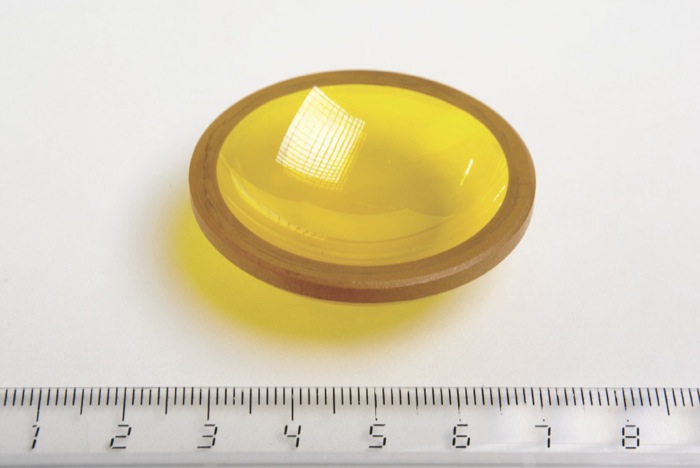

Material quality | Laser grade without boundaries and visible inclusions | Geometry | Meniscus, plano/convex , plano/concave, concave/concave, convex/convex | Range of Sizes | Diameter : 12.7 – 76.2 +0/-0.10 mm Edge Thickness : 2 – 5 +/-0.05 mm | Range of Effective Focal Length (EFL) | 12.7-254.0 +/- 2 % | Clear Aperture (polished) | 90% of diameter | Surface Figure (power-irregularity) at 0.63 microns | Plano: 1 - 0.5 fringe per inch Spherical: varies depending on radius | Surface Quality: Scratch-Dig | 80/50, 60/40, 40/20 : per MIL-0-13830 | AR Coating Reflectivity at 10.6 microns | 0.25% |
|

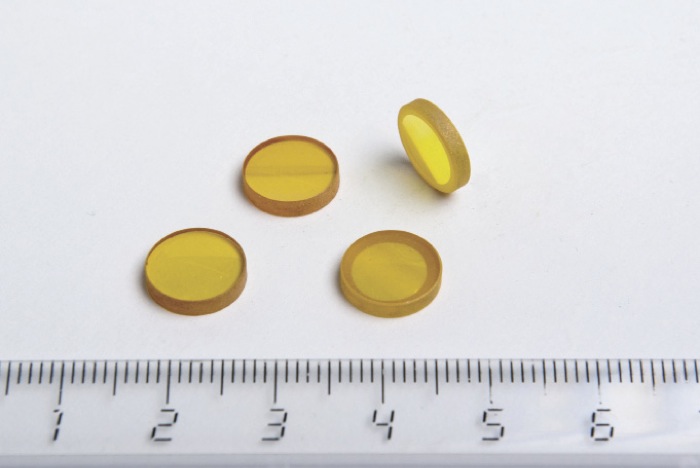

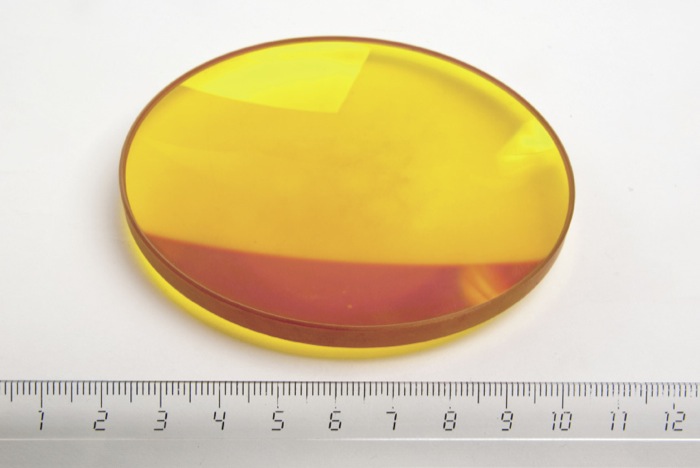

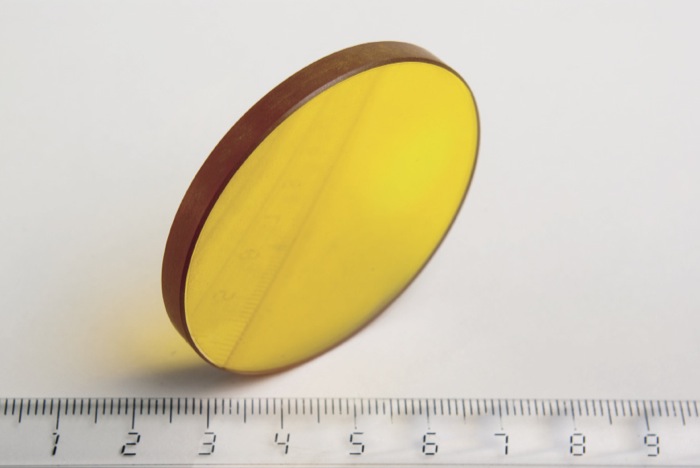

Material quality | Laser grade without boundaries and visible inclusions | Range of Sizes | Diameter : 1 – 111 mm Thickness : 0.5 – 12 mm | Parallelism | Plano : <3 arc minutes | Clear Aperture (polished) | 90% of diameter | Surface Figure (power-irregularity) at 0.63 microns | Plano : 1 fringe - 0.5 fringe per inch | Coating: uncoated | N/A | Coating: AR, BBAR, HR | Transmittance for 10.6 um: 99.25-0.25% (depends on the type of coating) | Surface Quality: Scratch-Dig | 80/50, 60/40, 40/20 : per MIL-0-13830 |
|

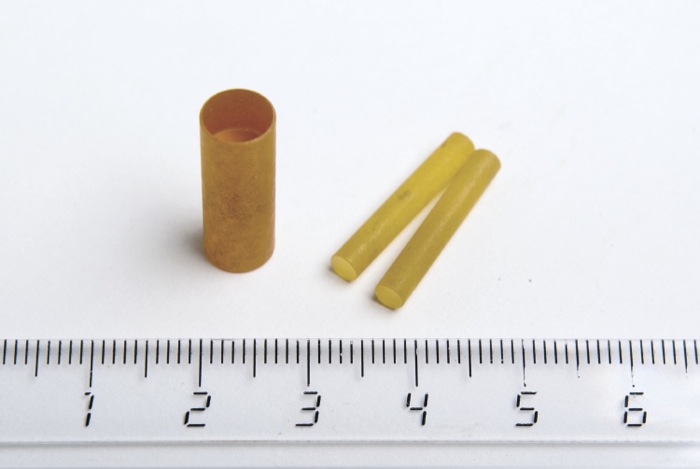

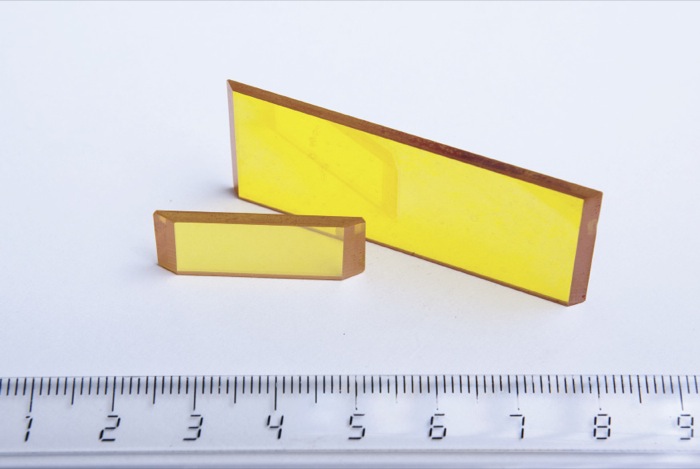

Diameter/Width | 12.7 – 111 mm | Thickness/Length | 3 – 11 mm | Material quality | Laser grade without boundaries and visible inclusions | Surface quality | As-cut, fine-ground, polished for visual inspection | Ends/Edge Quality | As-cut, fine-ground, polished for visual inspection |
|
|
|
